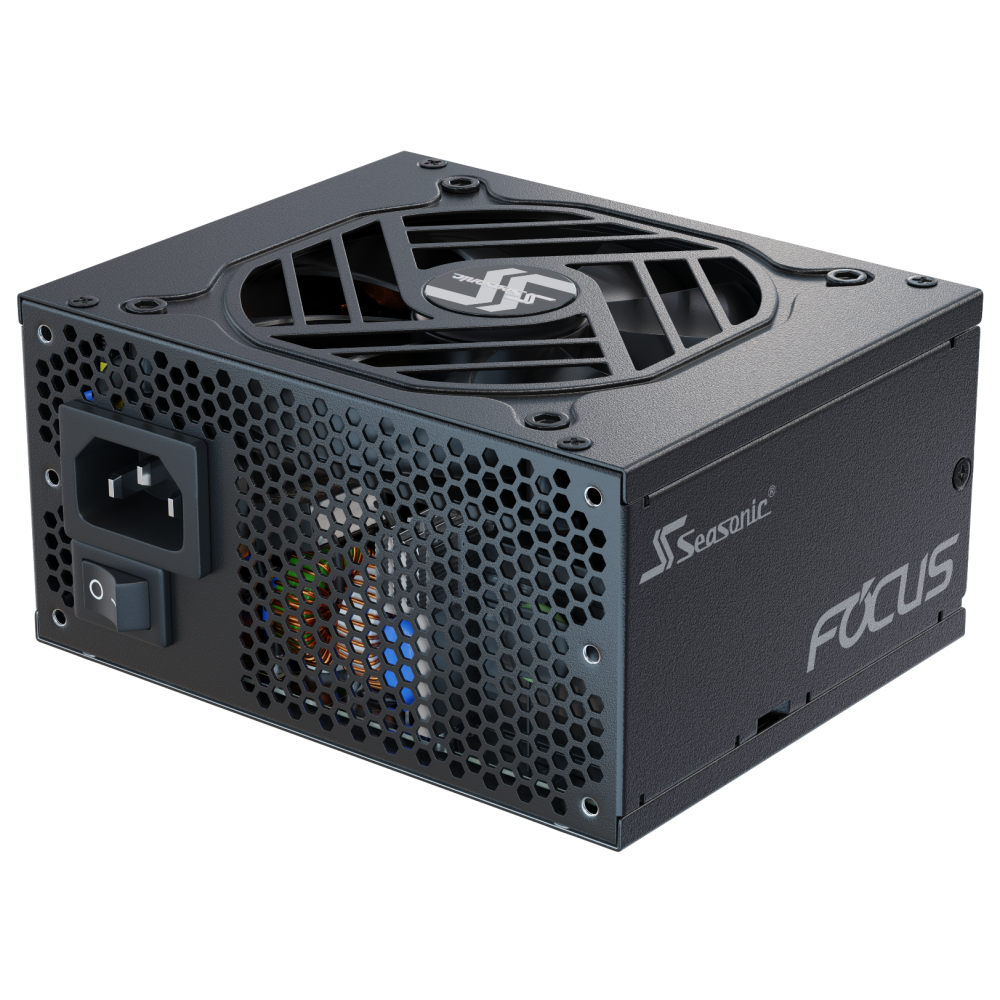

Seasonic PSUSEAFOCUS750SPX FOCUS SPX-750 750W Fully Modular PSU

FEATURE SUMMARY

80 PLUS® Platinum certified

Compact SFX Size - 125 (L) x 100 (W) x 63.5 (H) mm

Tight Voltage Regulation

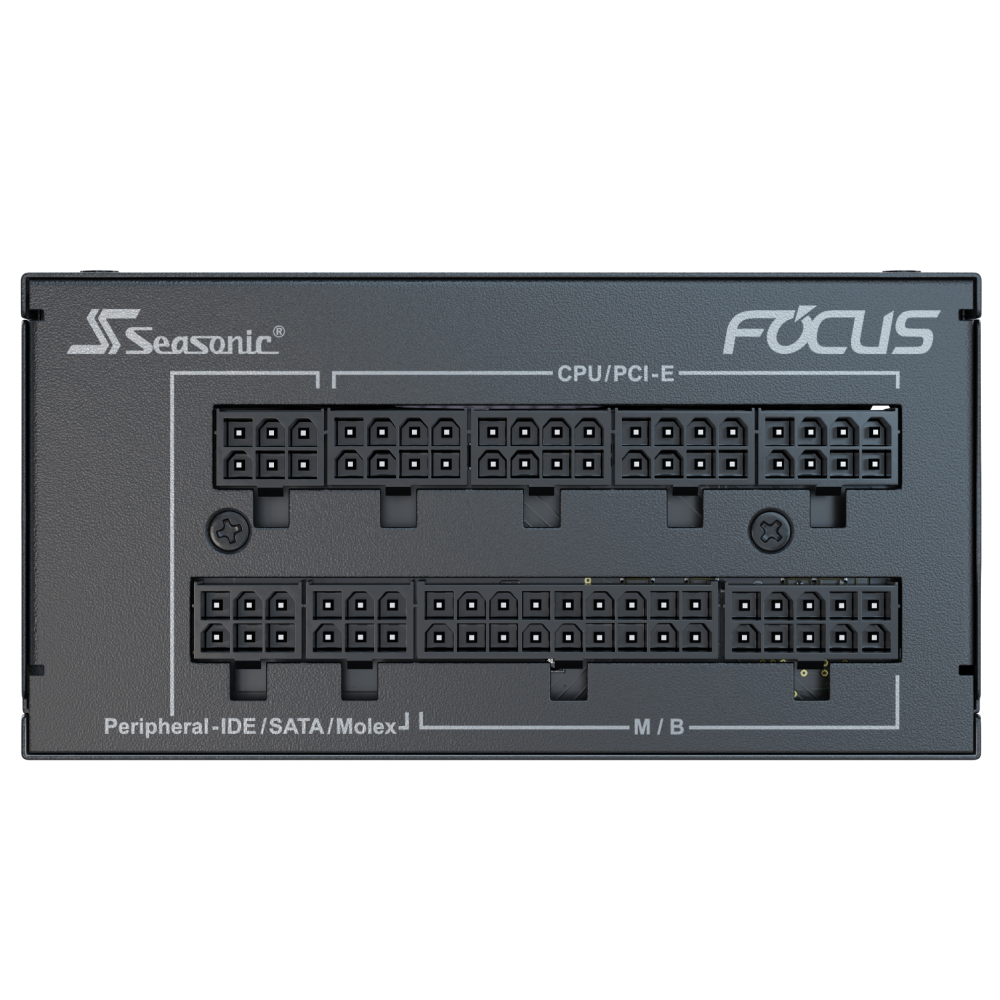

Cable-free Connection Design

S3FC - Fanless until 30 % load

SFX to ATX Expandability

Gold plated connectors

Technical Specifications80PLUS®PlatinumCybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel SFX 12 V / ATX 12 V
Dimensions
100 mm (L) x 125 mm (W) x 63.5 mm (H)
Fan InformationFan Size
92 mm
Fan ControlPremium Hybrid Fan ControlFan BearingFluid Dynamic BearingLife Expectancy50,000 hours at 40 °C, 15 % - 65 % RHCable InformationModularityFully ModularCable typeFlat black cablesElectrical FeaturesOperating Temperature0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)MTBF @ 25 °C, excl. fan
100,000 hours
AC InputFull RangeProtectionOPP, OVP, UVP, OCP, OTP, SCPSafety and EnvironmentalSafety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CEEnvironmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACHWarranty
10 Years
Power OutputAC InputVoltage: 100 V - 240 VCurrent: 10 - 5 A
Frequency: 50 Hz - 60 HzDC OutputRail+3.3 V+5 V+12 V-12 V+5 VSBMaximum Power
20 A
20 A
62 A
0.3 A
3 A100 W
744 W
3.6 W
15 WTotal Continuous Power
750 W
