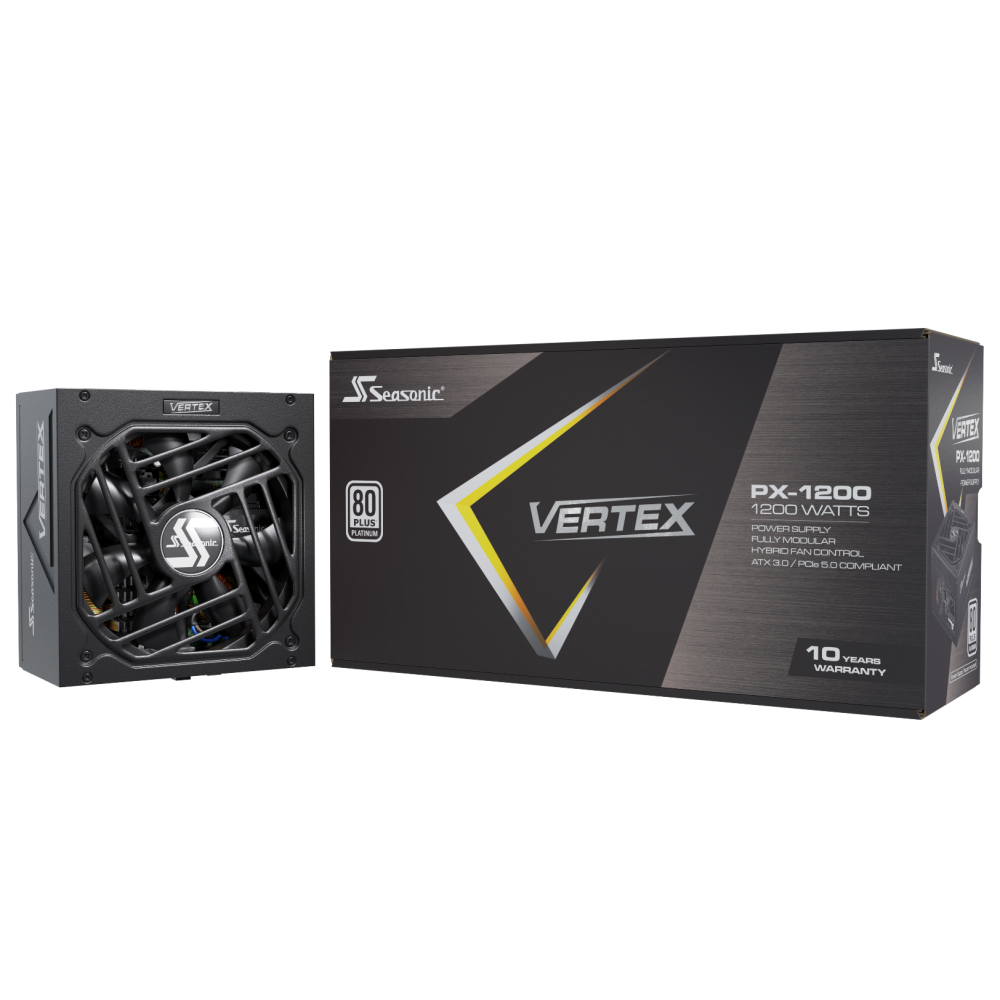

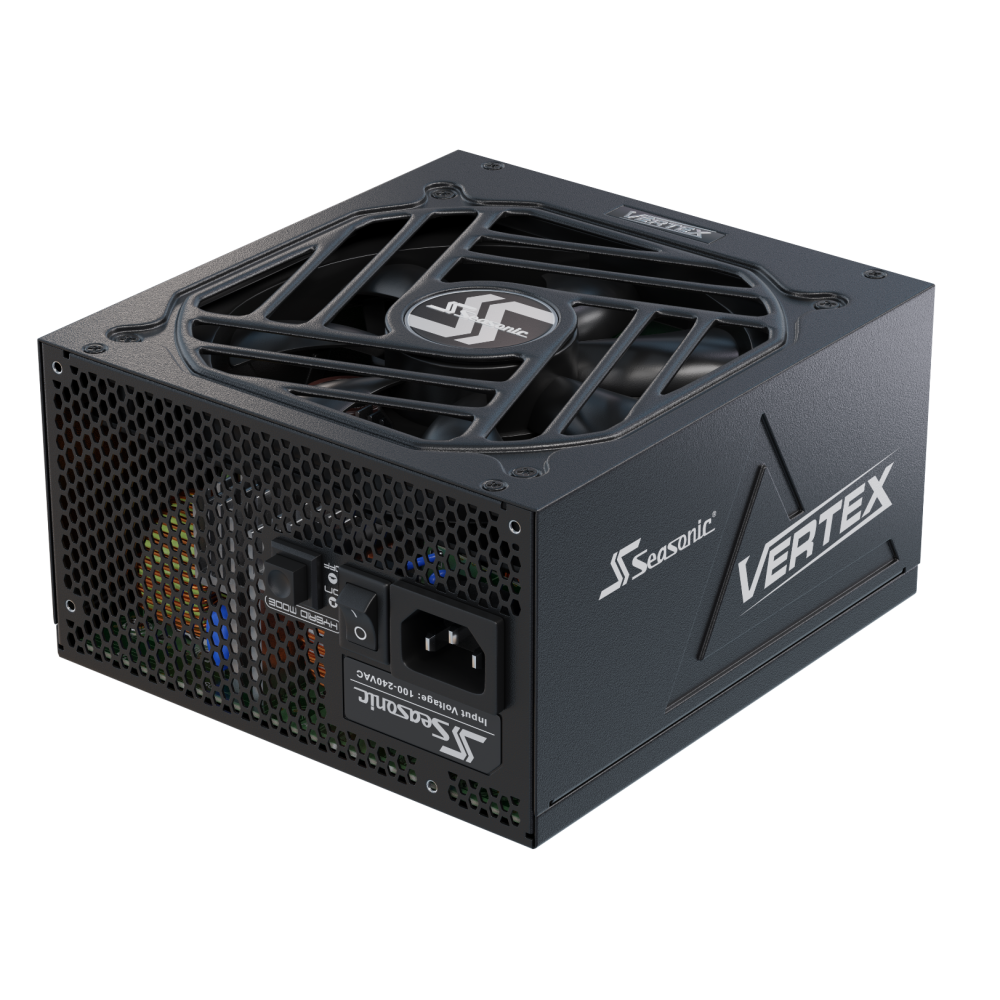

Seasonic PSUSEAVERPX1200 VERTEX 1200W (PX-1200) Platinum Fully Modular PSU ATX 3.0

FEATURE SUMMARY

Super-High Efficiency, 80 PLUS® Platinum Certified

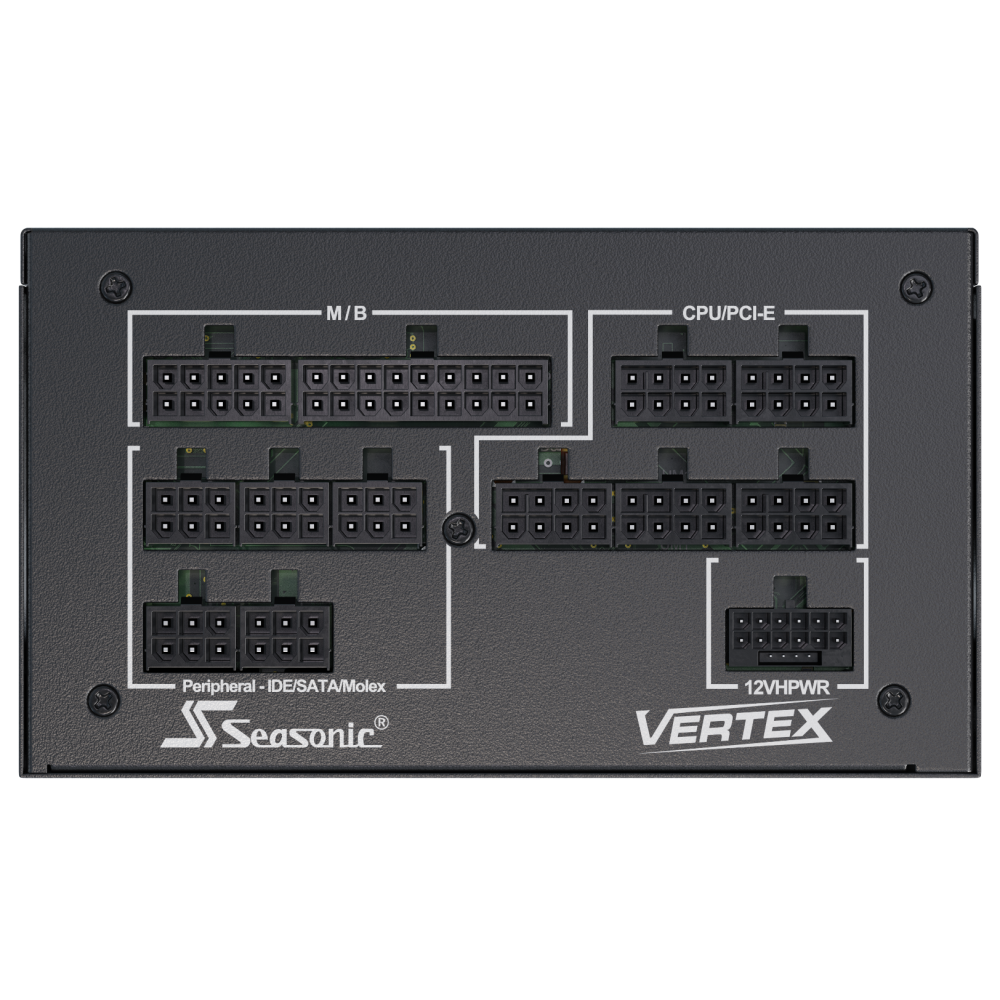

Fully Modular

ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)

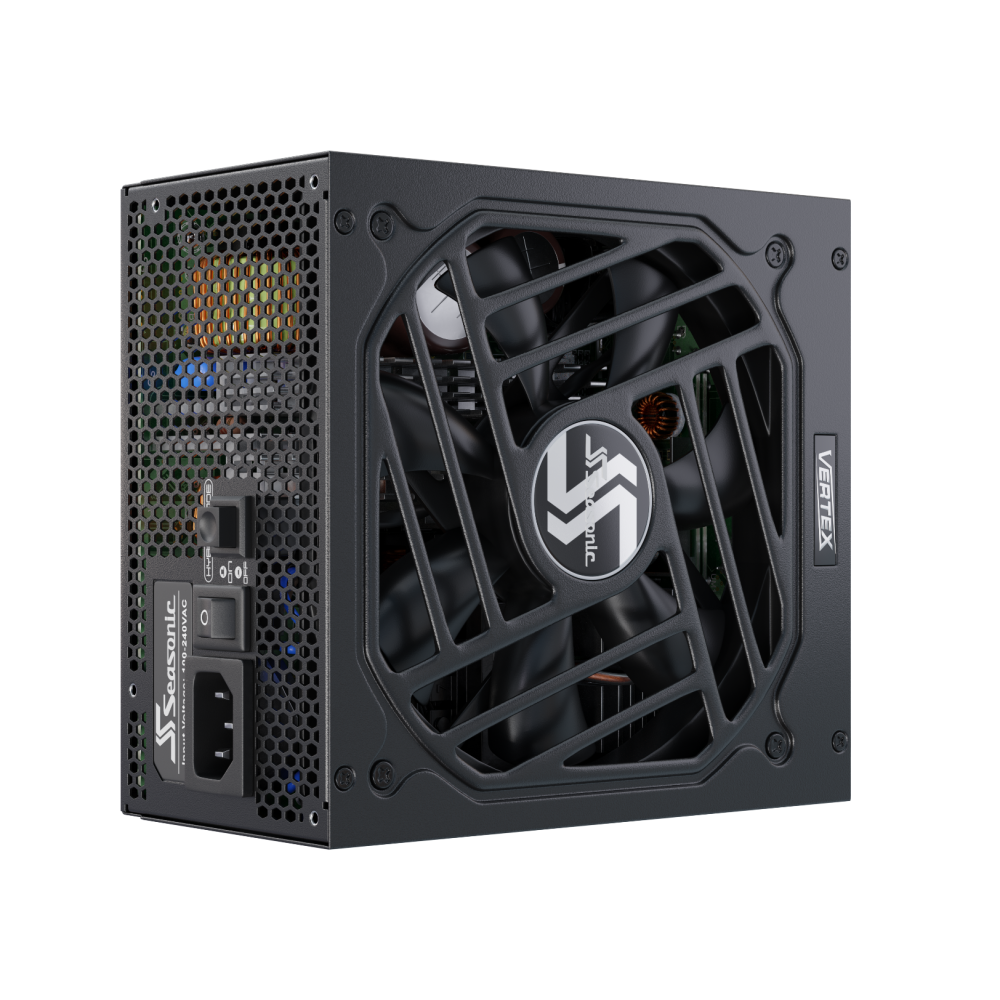

Top-Quality 135 mm Fluid Dynamic Bearing Fan

Premium Hybrid Fan Control

Tight Voltage Regulation (12V, 5V and 3.3V) [± 3%]

Gold Plated High Current Terminal (MB, CPU and PCIe)

Technical Specifications80PLUS®PlatinumCybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel ATX 12V
Dimensions
160 mm (L) x 150 mm (W) x 86 mm (H)
Fan InformationFan Size
135 mm
Fan ControlPremium Hybrid Fan ControlFan BearingFluid Dynamic BearingLife Expectancy50,000 hours at 40 °C, 15 % - 65 % RHCable InformationModularityFully ModularCable typeFlat black cablesElectrical FeaturesOperating Temperature0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)MTBF @ 25 °C, excl. fan
150,000 hours
AC InputFull RangeProtectionOPP, OVP, UVP, OCP, OTP, SCPSafety and EnvironmentalSafety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CEEnvironmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACHWarranty
10 Years
Power OutputAC InputVoltage: 100 V - 240 V
Current: 15 - 7.5 A
Frequency: 50 Hz - 60 HzDC OutputRail+3.3 V+5 V+12 V-12 V+5 VSBMaximum Power
25 A
25 A
100 A
0.3 A
3 A125 W
1200 W
3.6 W
15 WTotal Continuous Power
1200 W
