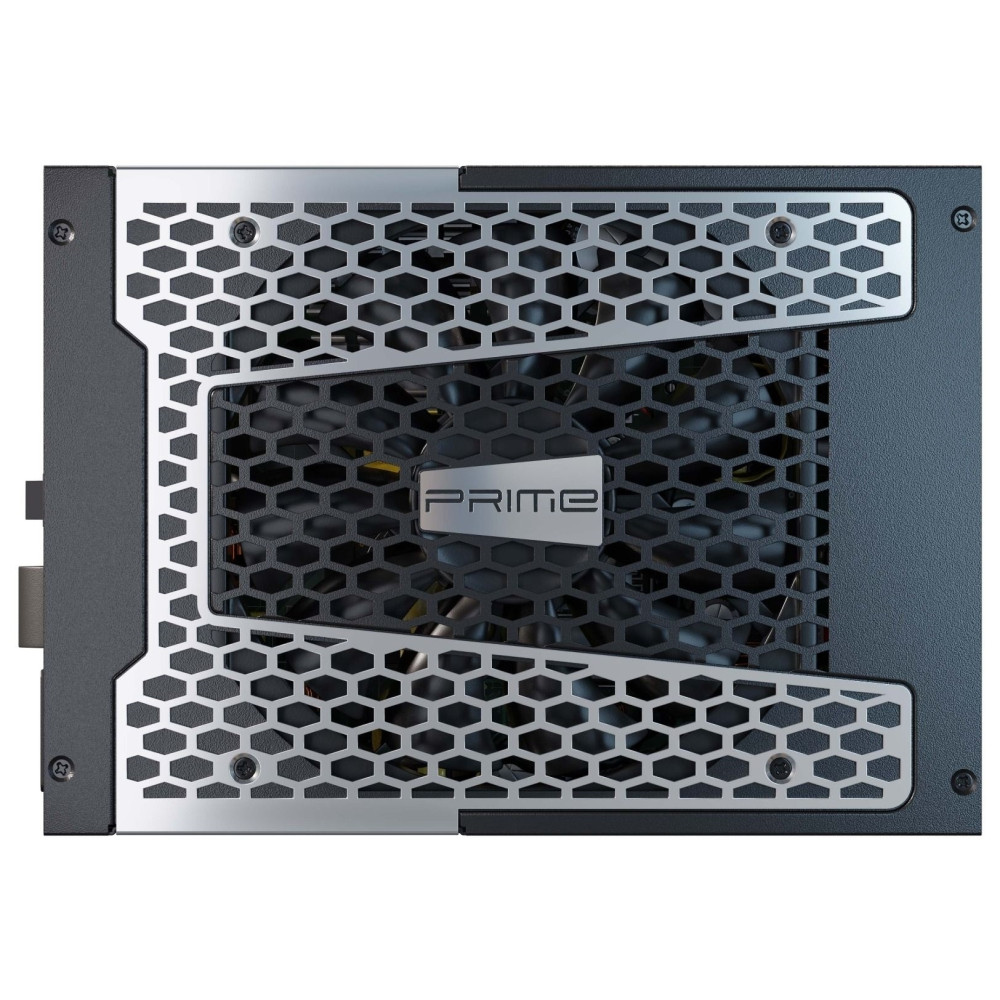

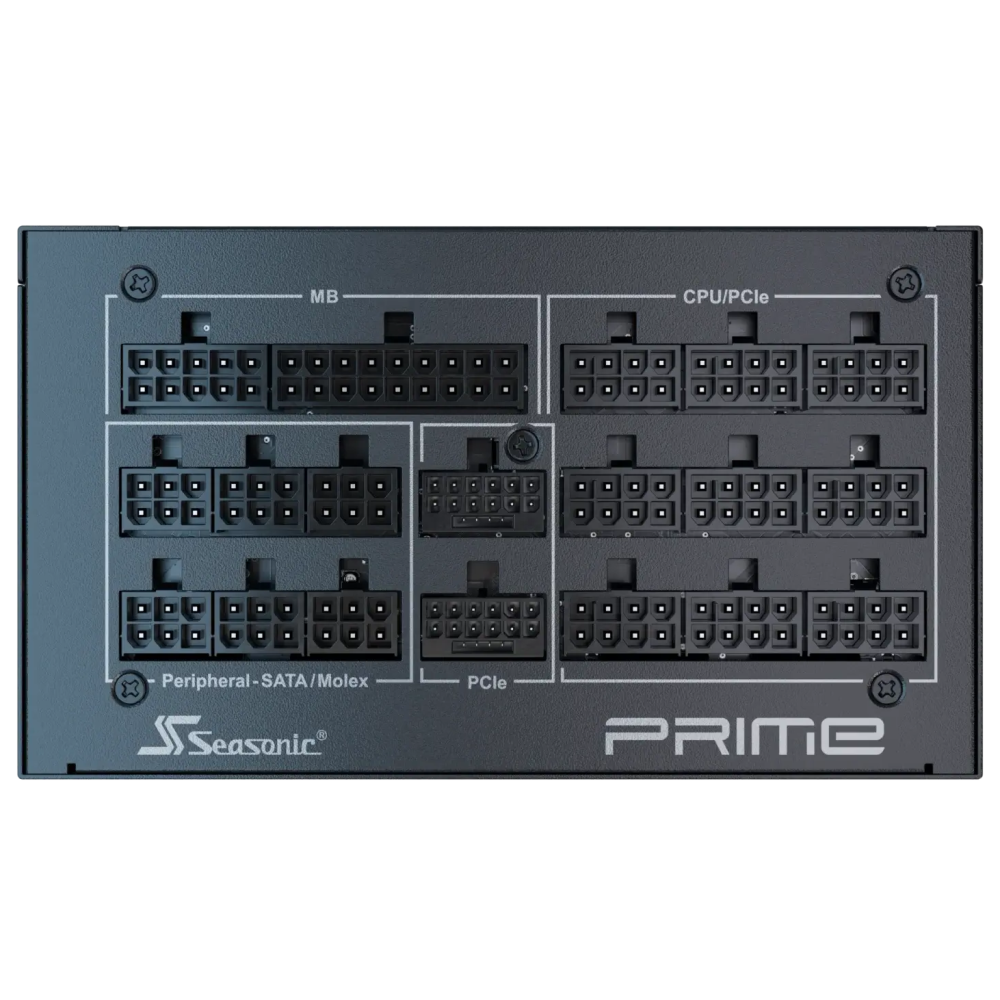

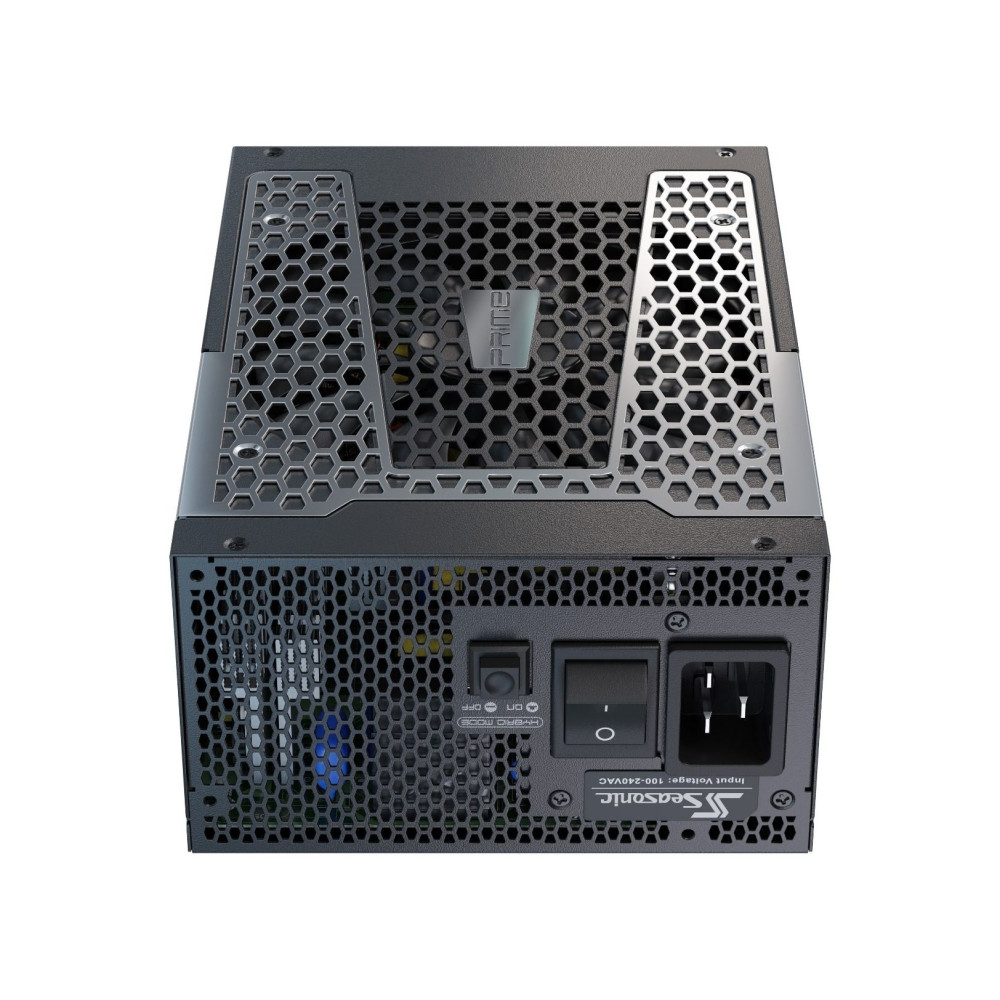

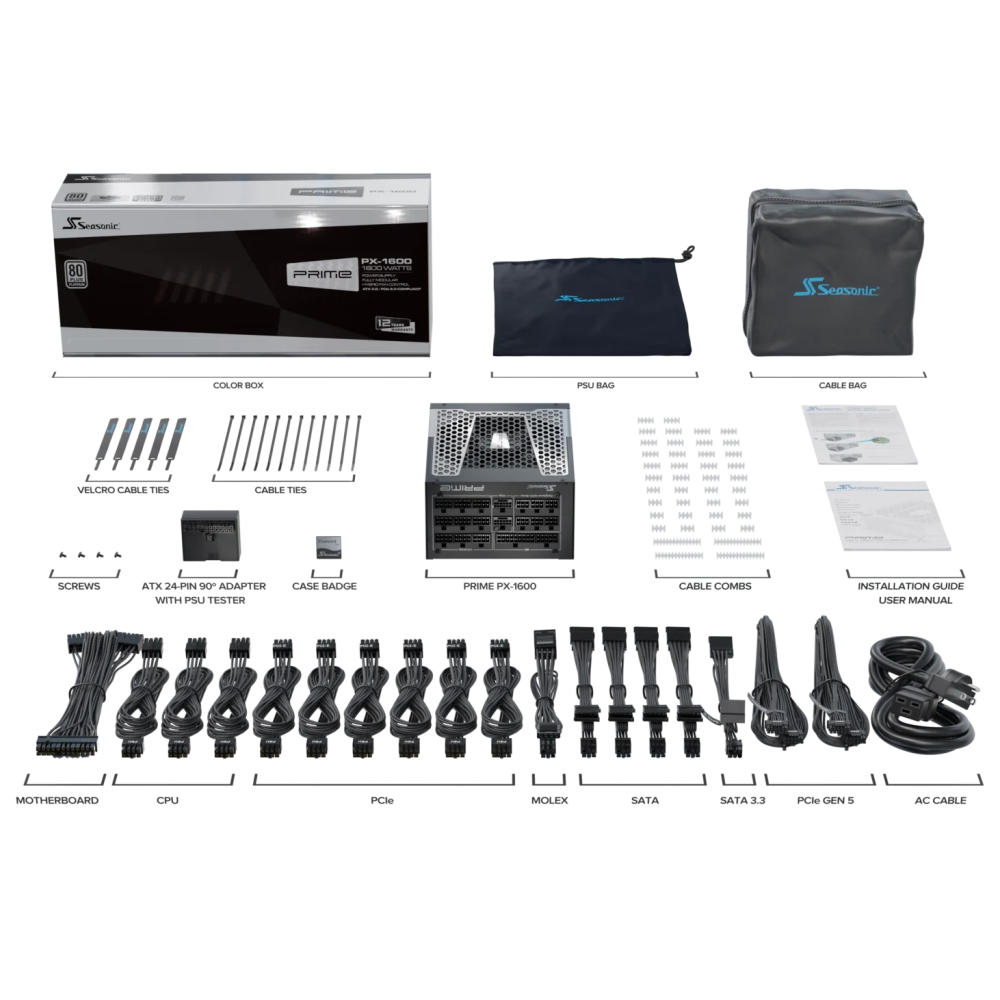

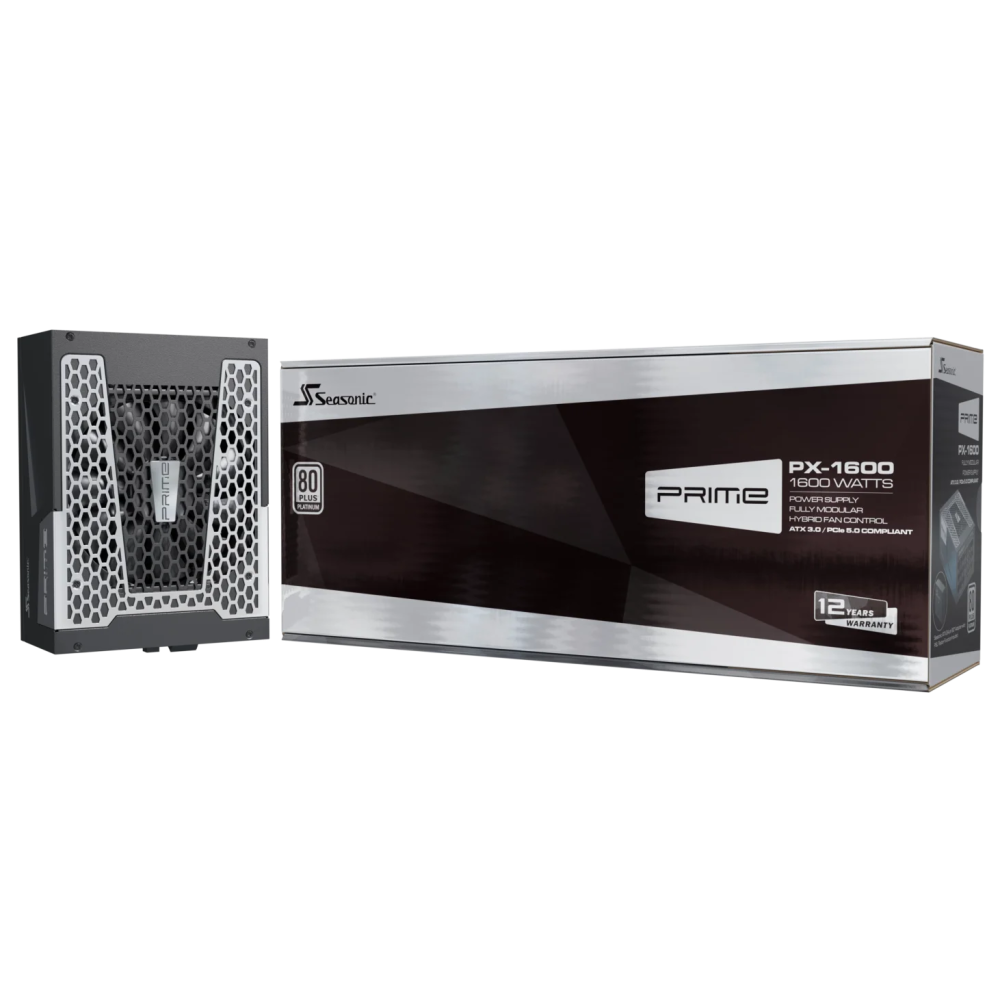

Seasonic PSUSEAPX1600A31 PRIME PX-1600 1600W Platinum ATX 3.1 Fully Modular PSU

PRIME PX ATX 3.1
The Seasonic PRIME PX ATX 3.1 Series is built on top of all the great features of PRIME PX platform with added ATX 3.1 and PCIe 5.1 compatibility. Currently the 1600 W is equipped with native 12V-2×6 connectors and Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make this power supply perfect to welcome the newest high power graphic cards and processors on the market.
The Seasonic PRIME ATX 3.0 Series power supplies were initially shipped with 12VHPWR cables. Following the update to the ATX 3.1 standard, we began replacing these with the new 12V-2×6 connectors.
Technical Specifications80PLUS®PlatinumCybenetics Efficiency LevelTitaniumCybenetics Noise Level
A-
Form FactorATX / EPSDimensions210 mm (L) x 150 mm (W) x 86 mm (H)Fan InformationFan Size135 mmFan ControlDigital Hybrid Fan ControlFan BearingFluid Dynamic BearingLife Expectancy50,000 hours at 40 °C, 15 % - 65 % RHCable InformationModularityFully ModularCable typeIndividual Black Cables with Braided PatternElectrical FeaturesOperating Temperature0 - 50 °CMTBF @ 25 °C, excl. fan
100,000 hours
AC InputFull RangeProtectionOPP, OVP, UVP, OCP, OTP, SCPSafety and EnvironmentalSafety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CEEnvironmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACHWarranty12 YearsPower OutputAC InputVoltage: 100 V - 240 VCurrent: 15 - 10 A
Frequency: 50 Hz - 60 HzDC OutputRail+3.3 V+5 V+12 V-12 V+5 VSBMaximum Power25 A25 A
133.3 A
0.5 A3 A125 W
1600 W
6 W15 WTotal Continuous Power
1600 W 115-240Vac
