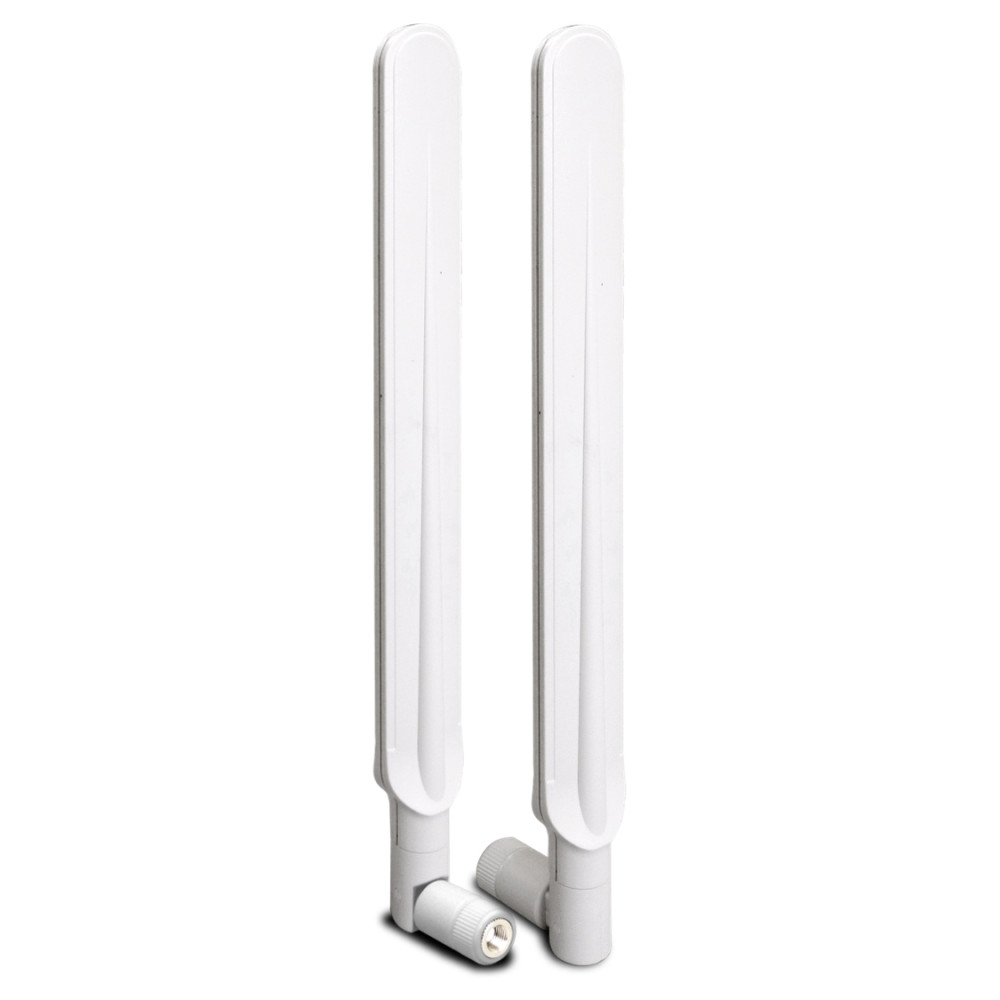

DRAYTEK ANT-1207WH 7db Dual-Band Omni Aerial High-gain Omni-Directional Antenna White
Specification:
- Operation Band: 2.4GHz and 5GHz
- Standard: IEEE 802.11a/b/g/n/ac
- 2.4GHz Frequency Range: 2400 to 2500 MHz
- 5GHz Frequency Range: 5150 to 5850 MHz
- 2.4GHz Gain: 5 dBi
- 5GHz Gain: 7 dBi
- 2.4GHz Voltage Standing Wave Ratio(VSWR): < 2.0
- 5GHz Voltage Standing Wave Ratio(VSWR): < 3.0
- Polarization: Linear
- HPBW Horizontal: 360°
- HPBW Vertical: 80°
- Power Handling: 5W
- Impedance: 50 Ω
- Connector: PR SMA Plug
- Environment: Indoor
